Available from Arrow-Master, Inc.

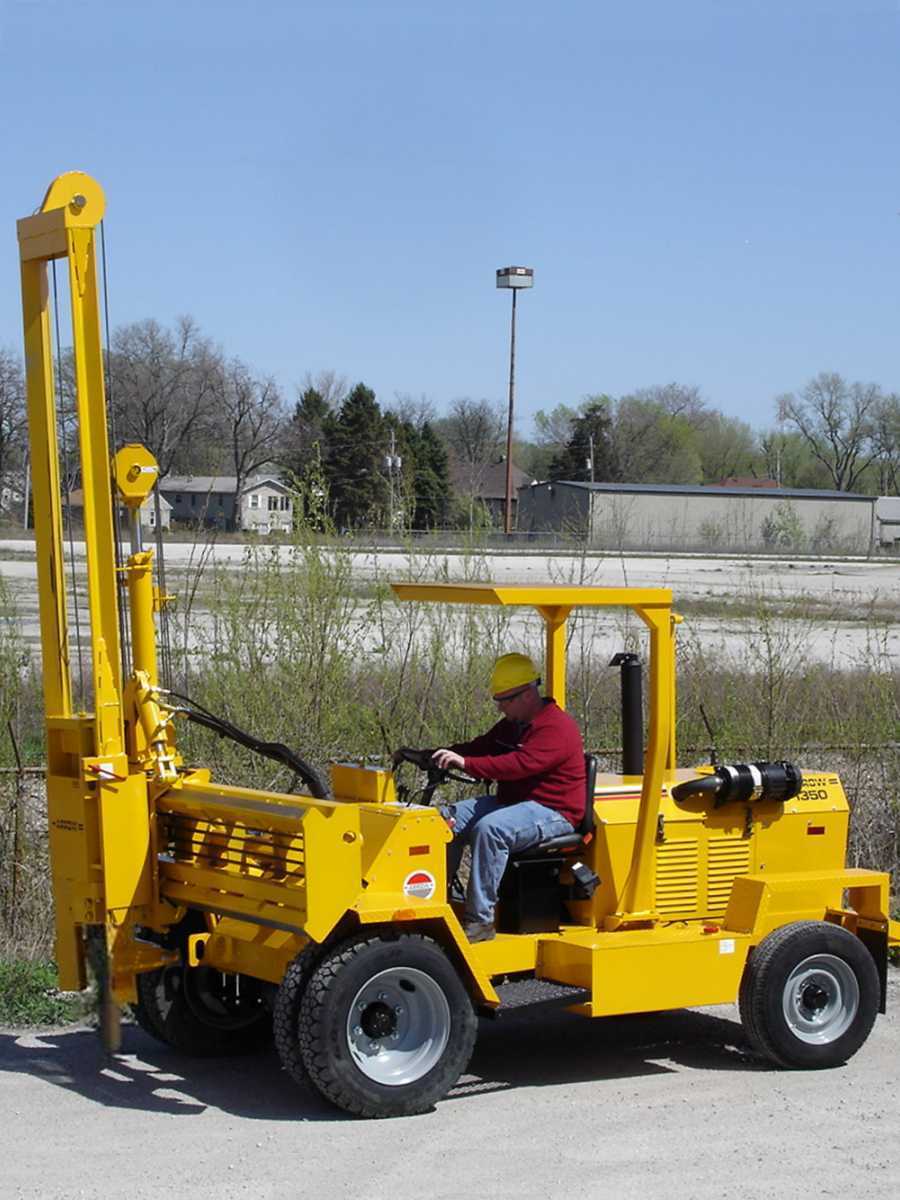

The Arrow Hammer Model 1350T is a pneumatic-tired, mobile hydraulic hammer that operates on and off paved surfaces. An 80 HP John Deere, Tier 3, turbocharged, engine provides power for the Arrow Hammer. The standard synchromesh transmission allows the machine to be driven at speeds up to 20 MPH. During operation, the unit propels itself through a hydraulically-controlled creeper gear, providing speeds up to 63 FPM.
The Arrow Hammer Model 1350T breaks, cuts, and scores concrete, rock, and asphalt into sizes suitable for excavation, recovery, or cracking and seating. It compacts and tamps backfill with adjustable impact up to 13,000 foot pounds; or a fraction of that force when it’s necessary to protect what's underground. Arrow is unquestionably the most effective tool for trench compaction. Standard features include electronic stroke control, a pivoting mast for maximum impact on uneven surfaces, stop lights and reflectors, and mechanical back-up alarm. A sample of available options include all-weather cab, suspension seat, twist-lock parking brake, chip guard, plus a full range of accessory tools.
